Technical Features
- Structure entirely in AISI 304 stainless steel
- Insulated stainless steel covers with high insulation power
- Innovative air circulation cooling
- Min. cooling temperature 0°C
- Variable belt speed with inverter from 0.5 to 2.5 mt/min.
- Hoods complete with inspection window
- High-brightness LED lighting
- Main belt and detacher belt made of blue food-grade polyurethane
- Belt scrapers for conveyor return
- Self-centering traction roller
- Automatic defrosting with electric heater and condensation drain
Dimensions
- Belt width: 670 mm
- Cooling length: 8 mt
- Standard decoration belt length: 1 mt
- Standard detacher belt length: 1 mt
- Total length: 11 mt • 10.6 kW, 400 V three-phase, 50 Hz (can be ordered with different voltages)

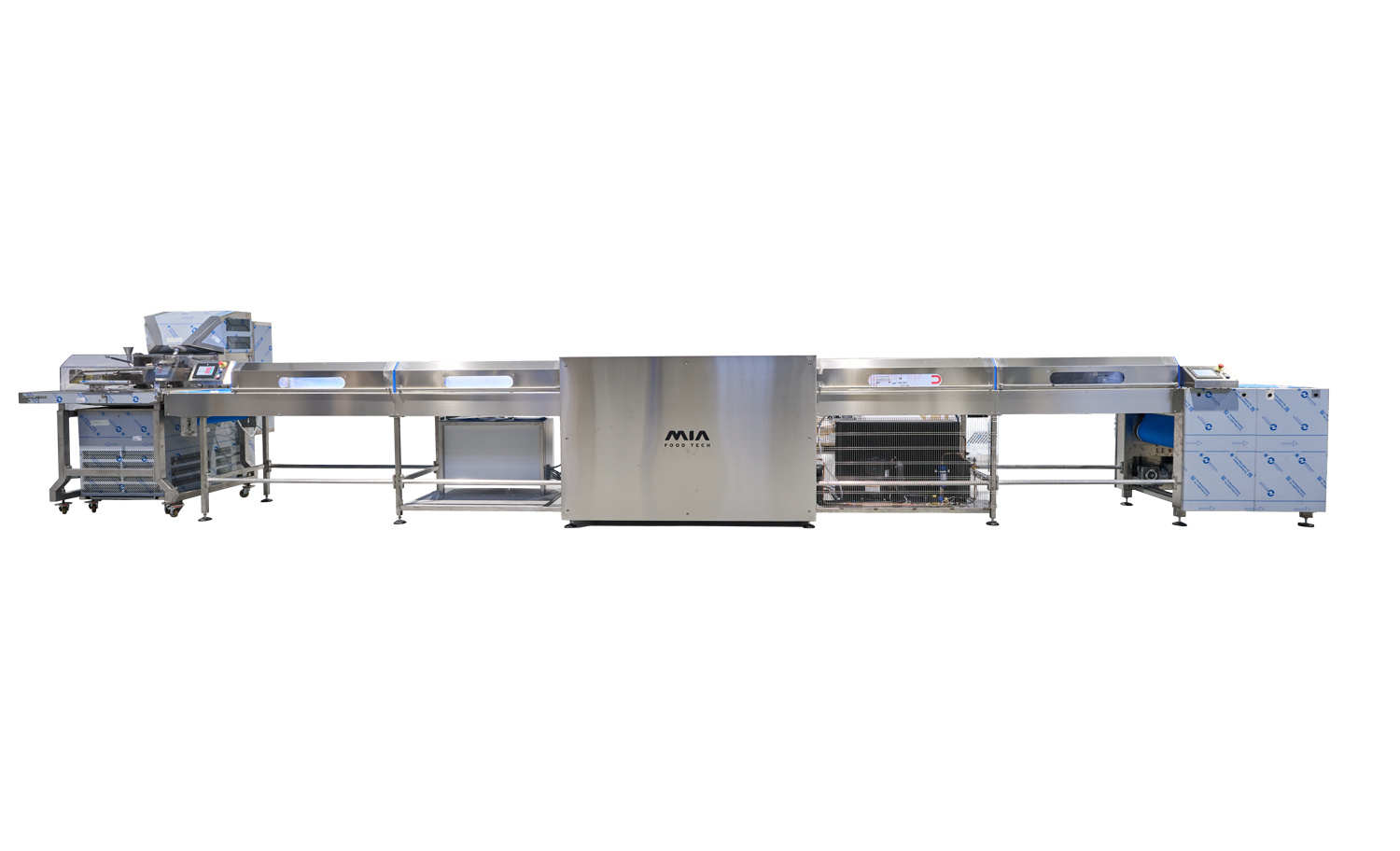

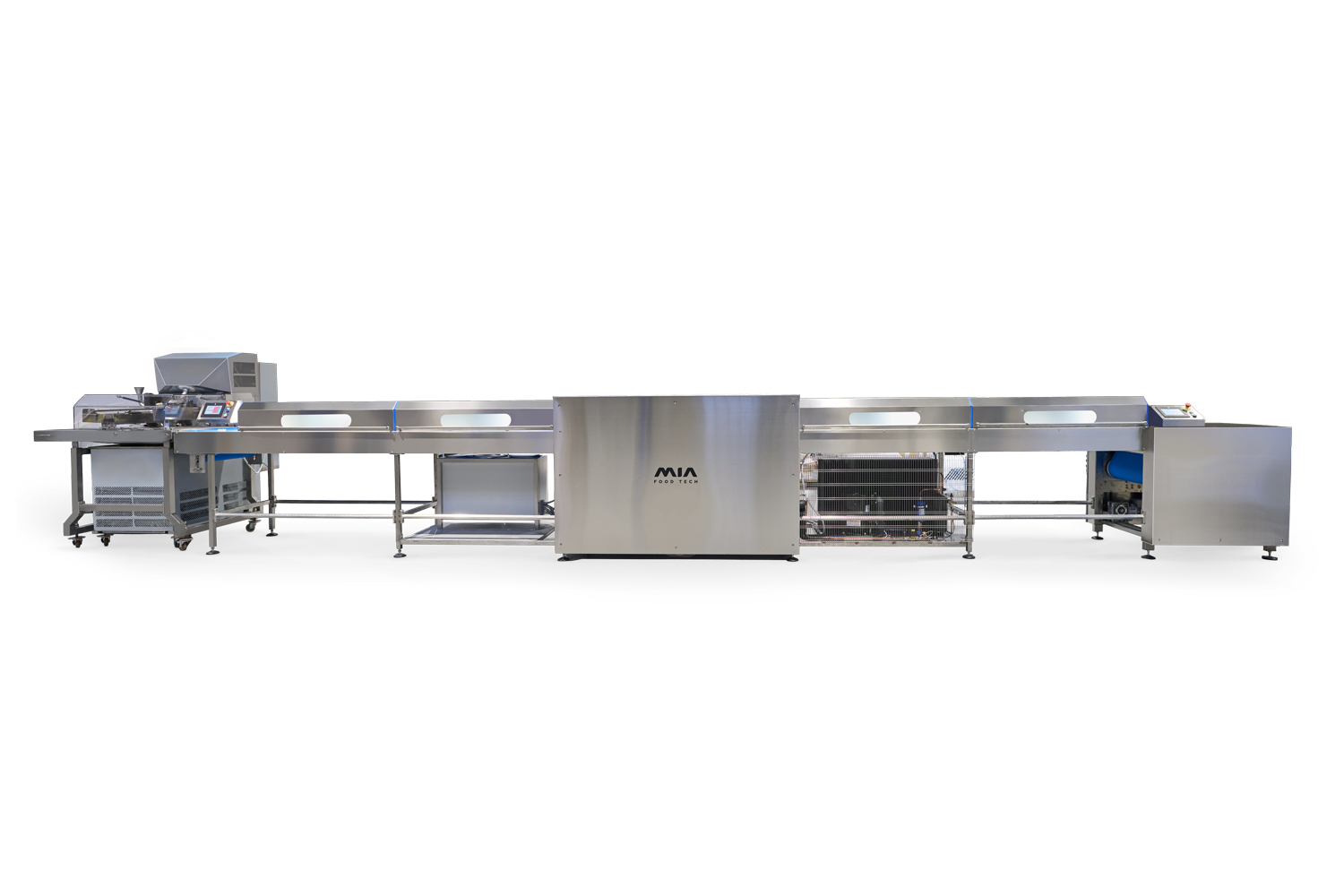

System combined with a TM-120 MAX tempering machine and an EL-630 MAX enrobing trolley for total, partial, and underside enrobing with chocolate.
Coolstream 670/8
Automatic professional cooling system for various product types.
Constructed entirely of stainless steel, the COOLSTREAM 670/8 has an insulated cooling length of 8 meters with a 670mm-wide blue polyurethane belt.
12- and 16-meter cooling lengths are available, which can be evaluated and recommended for specific product types.
The innovative internal air circulation system ensures uniform and constant air distribution at controlled humidity.
All functions are adjustable and controlled via a touch-screen panel.
The cooling unit includes an automatic defrosting system using electric heating elements for consistently optimal performance.
Chocolate
Automatic professional cooling system Coolstream 670/8
automatic professional cooling system for various product types
